SilverStone SX1000 adalah satu-satunya dari jenisnya sejauh ini, sehingga dengan mudah mengambil mahkota dalam kategori SFX-L berkapasitas tinggi, dan akan disertakan dalam artikel pilihan PSU terbaik. Jika Anda membutuhkan catu daya super kuat namun ringkas, Anda harus memperhatikan SX1000 dengan baik. Ini dapat dengan mudah mendukung sistem permainan yang kuat tanpa kompromi, dan selama Anda menjaga beban di bawah 700W, output kebisingannya tidak akan mengganggu Anda kecuali Anda sangat sensitif. Satu-satunya, utama, downside adalah harga tinggi, yang di pasar AS melebihi 300 dolar.

Silverstone baru-baru ini memperkenalkan lini SX PSU-nya, yang terdiri dari dua unit SFX-L dengan kapasitas 750W dan 1000W. Sangat mengesankan melihat PSU berdimensi kompak menghasilkan begitu banyak tenaga. SX1000 memiliki kerapatan daya 969W per liter, yang merupakan salah satu yang tertinggi yang pernah kami lihat sejauh ini. Untuk memastikannya dapat memberikan kekuatan penuhnya tanpa masalah, Silverstone melengkapinya dengan dua konektor EPS dan enam PCIe. Untungnya, semua kabel sepenuhnya modular, jadi Anda hanya dapat menggunakan kabel yang Anda butuhkan.

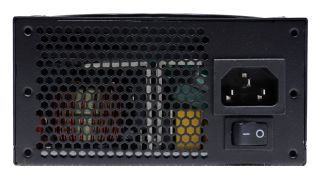

Gambar 1 dari 12

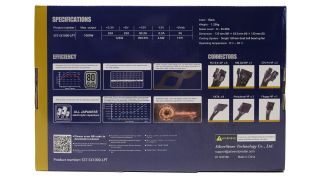

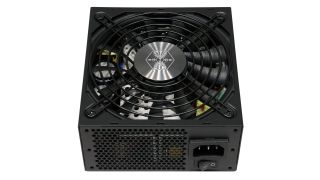

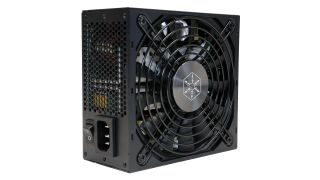

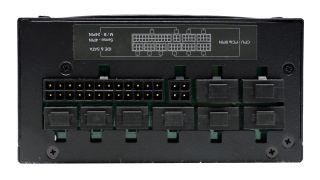

SilverStone SX1000

(Kredit gambar: Perangkat Keras Tom)

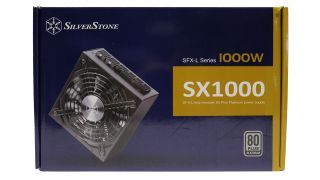

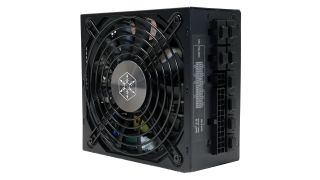

Foto Produk

Gambar 2 dari 12

SilverStone SX1000

(Kredit gambar: Tom’s Hardware)

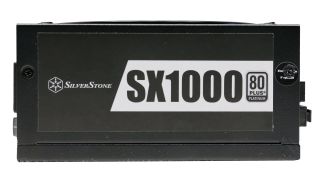

Gambar 3 dari 12

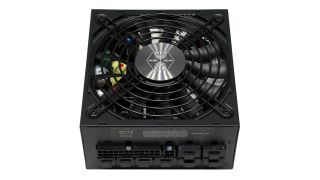

SilverStone SX1000

(Gambar kredit: Perangkat Keras Tom)
Gambar 4 dari 12

SilverStone SX1000

(Kredit gambar: Tom’s Hardware)
Gambar 5 dari 12

SilverStone SX1000

(Kredit gambar: Tom’s Hardware)
Gambar 6 dari 12

SilverStone SX1000

(Kredit gambar: Tom’s Hardware)
Gambar 7 dari 12

SilverStone SX1000

(Kredit gambar: Tom’s Hardware)
Gambar 8 dari 12

SilverStone SX1000

(Kredit gambar: Tom’s Hardware)
Gambar 9 dari 12

<.jpg 970w img src="https://vanilla.futurecdn.net/tomshardware/media/img/missing-imag e.svg"alt="SilverStone SX1000"class="lazy-image-van optional-image"onerror="if(this.src && this.src.indexOf('missing-image.svg') !==-1 ){return true;};this.parentNode.replaceChild(window.missingImage(),this)"size="(min-width: 1000px) 970px, calc(100vw-40px)"data-normal="https://vanilla.futurecdn.net/tomshardware/media/img/missing-image.svg"data-srcset="https://cdn.mos.cms.futurecdn.net/bQJZ55uWioXanMJhHdKDV7-320-80.jpg 320w, https://cdn.mos.cms.futurecdn.net/bQJZ55uWioXanMJhHdKDV7-650-80.jpg 650w, https://cdn.mos.cms.futurecdn.net/bQJZ55uWioXanMJhHdKDV7-970-80.jpg 970w="https"data-original-mos="https"://cdn.mos.cms.futurecdn.net/bQJZ55uWioXanMJhHdKDV7.jpg"data-pin-media="https://cdn.mos.cms.futurecdn.net/bQJZ55uWioXanMJhHdKDV7.jpg">

(Kredit gambar: Tom’s Hardware)

Gambar 10 dari 12

SilverStone SX1000

( Kredit gambar: Tom’s Hardware)
Gambar 11 dari 12

SilverStone SX1000

(Image credit: Tom’s Hardware)
Image 12 of 12

SilverStone SX1000

(Image credit: Tom’s Hardware)

Because of the high power density the temperatures at the internals will be high, so Silverstone decided to go with a double ball-bearing fan, which might be noisier than a similar spec FDB fan, but it is able to withstand much higher operating temperatures, without sweating. Besides capacitors, the cooling fan is among the most important parts inside a power supply, so you should pay great attention to its quality. If the fan fails early, the PSU will get high stress and it can even fail, if there is no over temperature protection.

Image 1 of 7

SilverStone SX1000

(Image credit: Tom’s Hardware)

Product Photos

Image 2 of 7

SilverStone SX1000

(Image credit: Tom’s Hardware)
Image 3 of 7

SilverStone SX1000

(Image credit: Tom’s Hardware)
Image 4 of 7

SilverStone SX1000

(Image credit: Tom’s Hardware)
Image 5 of 7

SilverStone SX1000

(Image credit: Tom’s Hardware)
Image 6 of 7

SilverStone SX1000

(Image credit: Tom’s Hardware)
Image 7 of 7

SilverStone SX1000

(Image credit: Tom’s Hardware)

Specifications

Manufacturer (OEM)

Enhance Electronics

Max. DC Output

1000W

Efficiency

80 PLUS Platinum, Cybenetics Platinum (89-91%) *

Noise

Cybenetics Standard+ (35-40 dB[A]) *

Modular

✓ (fully)

Intel C6/C7 Power State Support

Operating Temperature (Continuous Full Load)

0-50°C

Over Voltage Protection

Under Voltage Protection

Over Power Protection

Over Current (+12V) Protection

Over Temperature Protection

Short Circuit Protection

Surge Protection

Inrush Current Protection

Fan Failure Protection

No Load Operation

Cooling

120mm Double Ball Bearing Fan (B1201512HB)

Semi-Passive Operation

Dimensions (W x H x D)

125 x 65 x 130mm

Weight

1.39 kg (3.06 lb)

Form Factor

SFX-L, EPS 2.92

Warranty

5 Years

* Not certified yet by Cybenetics. According to our measurements, the PSU falls into these efficiency and noise categories.

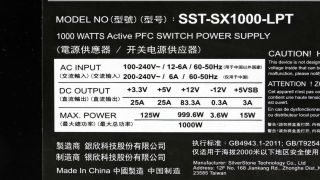

Power Specifications

Rail 3.3V 5V 12V 5VSB -12V Max. Power Amps 25 25 83.3 3 Watts 125 999.6 15 3.6 Total Max. Power (W) 1000

Cables & Connectors

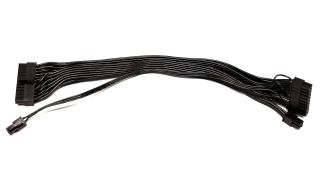

Fully Modular Cables Description Cable Count Connector Count (Total) Gauge In Cable Capacitors ATX connector 20+4 pin (300mm) 1 1 16-22AWG No 4+4 pin EPS12V (410mm) 2 2 16AWG No 6+2 pin PCIe (410mm+150mm) 3 6 16-18AWG No SATA (310mm+195mm+95mm+95mm) 2 8 18AWG No 4-pin Molex (310mm+195mm+195mm)/FDD (+100mm) 1 3/1 18-22AWG No AC Power Cord (1370mm)-C13 coupler 1 1 16AWG –

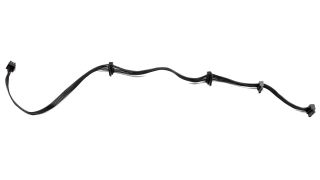

There are plenty of cables and connectors, including two EPS, six PCIe, and eight SATA connectors. There is even a Berg connector, which should be replaced though with a 4-pin Molex. Very few users need a Berg/FDD connector, and the ones who need it can get an adapter. So why waste a 4-pin Molex for a rarely used FDD connector.

Cable length is short since this is a small form factor PSU, destined for an equally small chassis. Nonetheless, the distance between the peripheral connectors is impressively long, showing that Silverstone took into account any possible cable management and root issues.

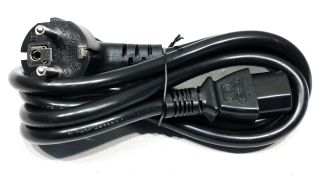

Image 1 of 6

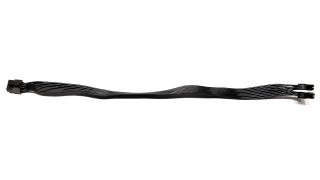

SilverStone SX1000

(Image credit: Tom’s Hardware)

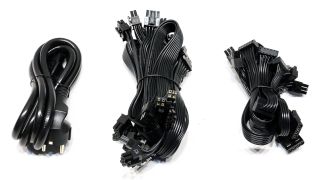

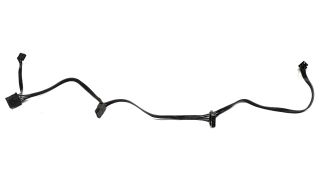

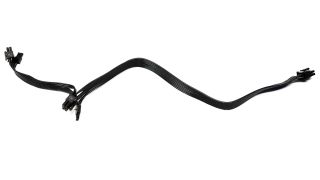

Cable Photos

Image 2 of 6

SilverStone SX1000

(Image credit: Tom’s Hardware)
Image 3 of 6

SilverStone SX1000

(Image credit: Tom’s Hardware)
Image 4 of 6

SilverStone SX1000

(Image credit: Tom’s Hardware)
Image 5 of 6

SilverStone SX1000

(Image credit: Tom’s Hardware)
Image 6 of 6

SilverStone SX1000

(Image credit: Tom’s Hardware)

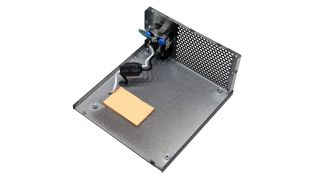

Component Analysis

We strongly encourage you to have a look at our PSUs 101 article, which provides valuable information about PSUs and their operation, allowing you to better understand the components we’re about to discuss.

General Data – Manufacturer (OEM) Enhance Electronics PCB Type Double Sided Primary Side – Transient Filter 4x Y caps, 4x X caps, 2x CM chokes, 1x MOV Inrush Protection NTC Thermistor MF72 5D-15 (5 Ohm) & Relay Bridge Rectifier(s)

1x

APFC MOSFETs

2x Infineon IPW60R099C6 (600V, 24A @ 100°C, Rds(on): 0.099Ohm)

APFC Boost Diode

1x USCi UJ3D06520TS (650V, 20A @ 152°C)

Bulk Cap(s)

2x Rubycon (400V, 470uF each or 940uF combined, 3,000h @ 85°C, USK)

Main Switchers

4x Toshiba TK20A60W (600V, 20A, Rds(on): 0.155Ohm)

APFC Controller

ATK AT6103ZSPC

Resonant Controller ATK AT6301ZTSF Topology

Primary side: APFC, Full-Bridge & LLC converter
Secondary side: Synchronous Rectification & DC-DC converters

Secondary Side – +12V MOSFETs 8x Infineon BSC014N04LS (40V, 125A @ 100°C, Rds(on): 1.4mOhm) 5V & 3.3V DC-DC Converters: 4x Infineon BSC018NE2LS (25V, 97A @ 100°C, Rds(on): 1.8mOhm)
PWM Controller(s): uPI Semi uP3861P Filtering Capacitors

Electrolytic: 2x Rubycon (3-6,000h @ 105°C, YXG), 2x Rubycon (6-10,000h @ 105°C, ZLH)
Polymer: 8x Unicon (2,000h @ 125°C, UPL), 13x (5,000h @ 105°C, UPT)

Supervisor IC Weltrend WT7527RA (OCP, OVP, UVP, SCP, PG) Fan Model Globe Fan B1201512HB (120mm, 12V, 0.45A, Double Ball Bearing Fan) 5VSB Circuit – Rectifier(s)

1x Silan Microelectronics SVF2N70MJ FET (700V, 1.3A @ 100°C, Rds(on): 6.5Ohm)

Standby PWM Controller ATK AT6002H

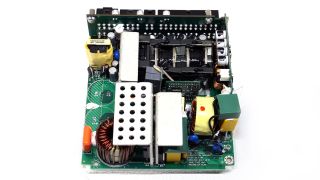

Image 1 of 4

SilverStone SX1000

(Image credit: Tom’s Hardware)

Overall Photos

Image 2 of 4

SilverStone SX1000

(Image credit: Tom’s Hardware)
Image 3 of 4

SilverStone SX1000

(Image credit: Tom’s Hardware)
Image 4 of 4

SilverStone SX1000

(Image credit: Tom’s Hardware)

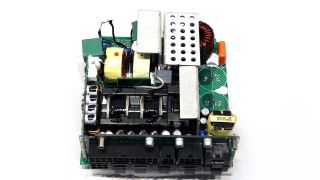

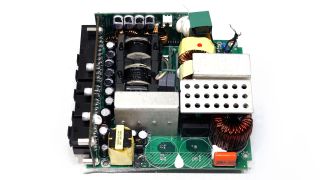

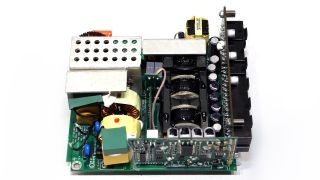

The platform’s design is interesting and clean, despite the high power density. Enhance Electronics, the OEM, used quite large heat sinks on the primary side, with perforations on the APFC heat sink to allow airflow to the components installed below it. In addition, there are two main transformers, installed in parallel, to handle the unit’s increased power output.

It is impressive to see a full-bridge design in a small form factor power supply. An LLC resonant converter is also used for higher efficiency. We find synchronous rectification for the +12V rail on the secondary side, and the minor rails are generated through a pair of DC-DC converters.

Image 1 of 6

SilverStone SX1000

(Image credit: Tom’s Hardware)

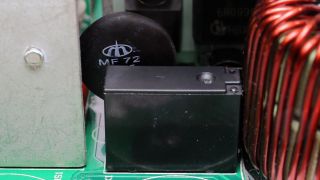

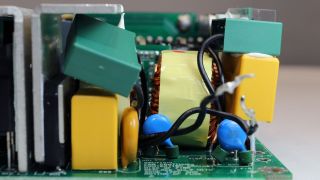

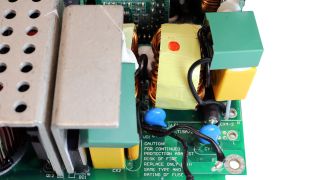

Transient filter

Image 2 of 6

SilverStone SX1000

(Image credit: Tom’s Hardware)
Image 3 of 6

SilverStone SX1000

(Image credit: Tom’s Hardware)
Image 4 of 6

SilverStone SX1000

(Image credit: Tom’s Hardware)
Image 5 of 6

SilverStone SX1000

(Image credit: Tom’s Hardware)
Image 6 of 6

SilverStone SX1000

(Image credit: Tom’s Hardware)

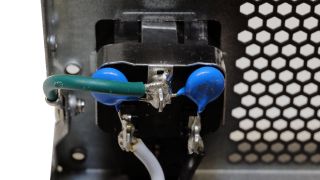

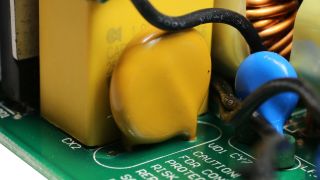

The first part of the EMI filter is on the AC receptacle and consists of two Y caps. The second part, on the main PCB, includes two Y and four X caps and a pair of CM chokes. There is also an MOV for protection against voltage surges. The unit’s large inrush currents are suppressed by an NTC thermistor and bypass relay combo.

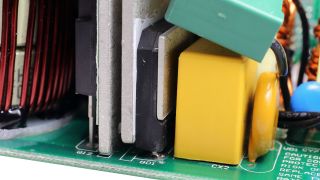

SilverStone SX1000 Bridge Rectifier

(Image credit: Tom’s Hardware)

The PSU uses a single bridge rectifier which was impossible to identify without completely removing the heat sink that it was bolted on. So we left this fight for another time.

Image 1 of 4

SilverStone SX1000

(Image credit: Tom’s Hardware)

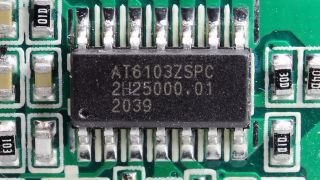

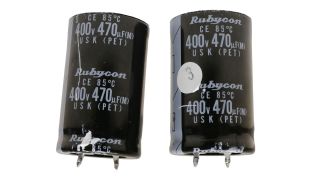

APFC converter

Image 2 of 4

SilverStone SX1000

(Image credit: Tom’s Hardware)
Image 3 of 4

SilverStone SX1000

(Image credit: Tom’s Hardware)
Image 4 of 4

SilverStone SX1000

(Image credit: Tom’s Hardware)

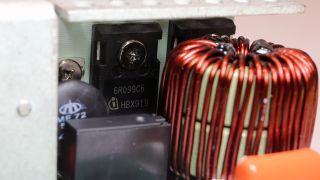

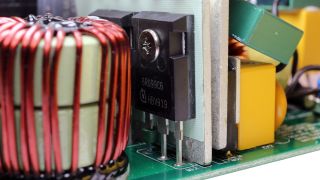

The APFC converter uses two Infineon FETs and a single boost diode (USCi UJ3D06520TS), among the strongest we have seen so far. The bulk caps are by Rubycon, and their combined capacity is high at 940uF. Finally, the APFC controller is an AT6103ZSPC IC.

Image 1 of 3

SilverStone SX1000

(Image credit: Tom’s Hardware)

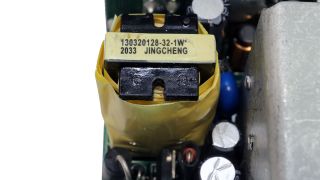

Main FETs and primary transformer

Image 2 of 3

SilverStone SX1000

(Image credit: Tom’s Hardware)
Image 3 of 3

SilverStone SX1000

(Image credit: Tom’s Hardware)

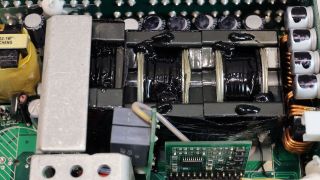

The main FETs are arranged into a full-bridge topology. An LLC resonant converter is also used to boost efficiency. The LLC resonant controller is an AT6301ZTSF IC.

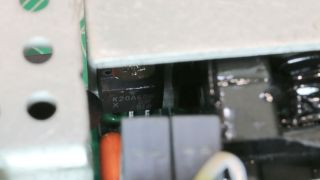

Image 1 of 4

SilverStone SX1000

(Image credit: Tom’s Hardware)

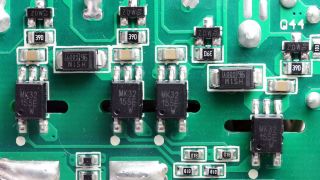

12V FETs and VRMs

Image 2 of 4

SilverStone SX1000

(Image credit: Tom’s Hardware)
Image 3 of 4

SilverStone SX1000

(Image credit: Tom’s Hardware)
Image 4 of 4

SilverStone SX1000

(Image credit: Tom’s Hardware)

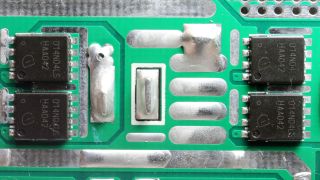

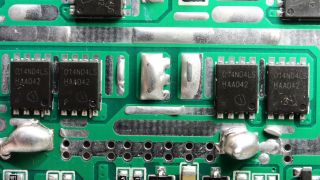

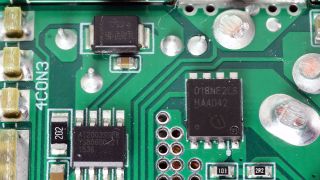

Eight FETs regulate the +12V rail, and four FETs handle the minor rails. Infineon provides all, so they are of high quality. The common PWM controller for the DC-DC converters is a uPI Semi uP3861P IC.

Image 1 of 3

SilverStone SX1000

(Image credit: Tom’s Hardware)

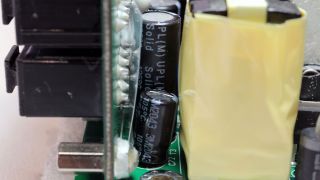

Filtering caps

Image 2 of 3

SilverStone SX1000

(Image credit: Tom’s Hardware)
Image 3 of 3

SilverStone SX1000

(Image credit: Tom’s Hardware)

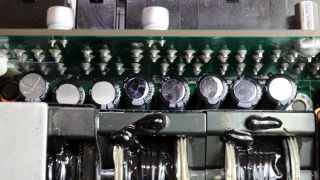

There aren’t many electrolytic caps on the secondary side, but the ones that Enhance used are of high quality. Lastly, the increased number of polymer caps is by Unicon.

Image 1 of 3

SilverStone SX1000

(Image credit: Tom’s Hardware)

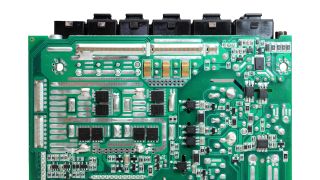

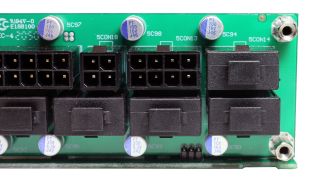

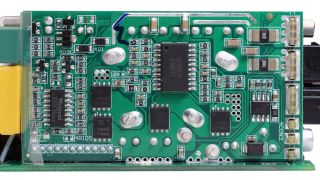

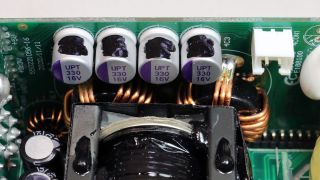

Modular board front

Image 2 of 3

SilverStone SX1000

(Image credit: Tom’s Hardware)
Image 3 of 3

SilverStone SX1000

(Image credit: Tom’s Hardware)

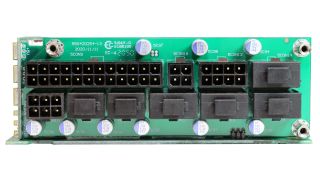

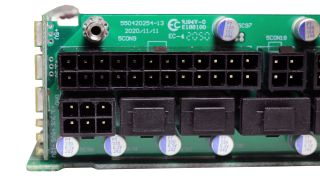

Nine polymer caps are installed on the face of the modular board, forming a secondary ripple filtering layer.

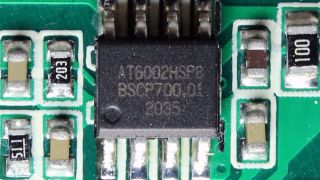

Image 1 of 2

SilverStone SX1000

(Image credit: Tom’s Hardware)
Image 2 of 2

SilverStone SX1000

(Image credit: Tom’s Hardware)

The rectifier on the primary side of the 5VSB converter is an SVF2N70MJ FET, while the standby PWM controller is an ATK AT6002H IC.

Image 1 of 2

SilverStone SX1000

(Image credit: Tom’s Hardware)
Image 2 of 2

SilverStone SX1000

(Image credit: Tom’s Hardware)

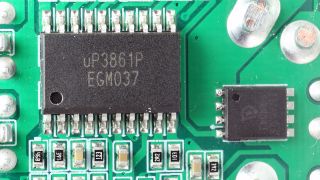

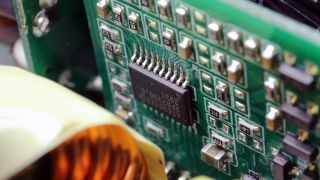

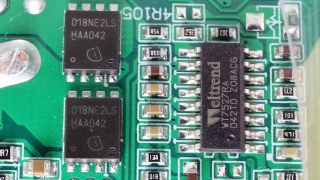

The board that hosts the DC-DC converters for the minor rails also hosts the supervisor IC, a Weltrend WT7527RA.

Image 1 of 4

SilverStone SX1000

(Image credit: Tom’s Hardware)

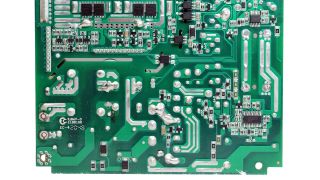

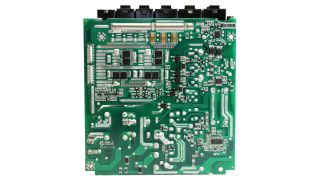

Soldering quality

Image 2 of 4

SilverStone SX1000

(Image credit: Tom’s Hardware)
Image 3 of 4

SilverStone SX1000

(Image credit: Tom’s Hardware)
Image 4 of 4

SilverStone SX1000

(Image credit: Tom’s Hardware)

Soldering quality is good in general. There are some spots with increased solder, but they do not affect performance and reliability.

Image 1 of 2

SilverStone SX1000

(Image credit: Tom’s Hardware)

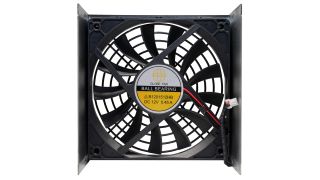

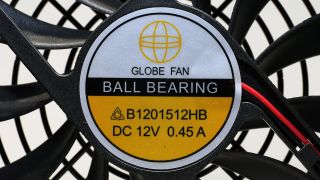

Cooling fan

Image 2 of 2

SilverStone SX1000

(Image credit: Tom’s Hardware)

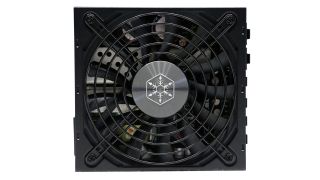

The fan is by Globe Fan and uses a double ball-bearing to last for long, even under increased operating temperatures.
